radiant beast

2023 170 Sprinter EXT AWD

  • Four season insulation using Havelock wool
  • Interior cabinetry in Fenix with soft up/down locking hardware, Blum slides. Lagun tabletop
  • Above cab headliner shelf wrapped in custom Pendleton fabric
  • Two panel platform bed with 4.5” memory foam mattress & Froli sleep system
  • Built in non-DOT lounge bench with 3” upholstered cushion top and backrest
  • Scheel-Mann seats to replace factory driver & passenger seats
  • Single burner induction cooktop, stainless sink & faucet, Vitifrigio DW 180 5.3 CUFT fridge, Breville Grind Control coffeemaker in powered, pullout coffeemaker cabinet
  • Thetford 565 fully self contained full flush cassette toilet on pullout tray
  • Benchmark 4 season bug and weather screens, full height at rear and sliding doors
  • Rear soft bulkhead for upper bed with insulated curtain

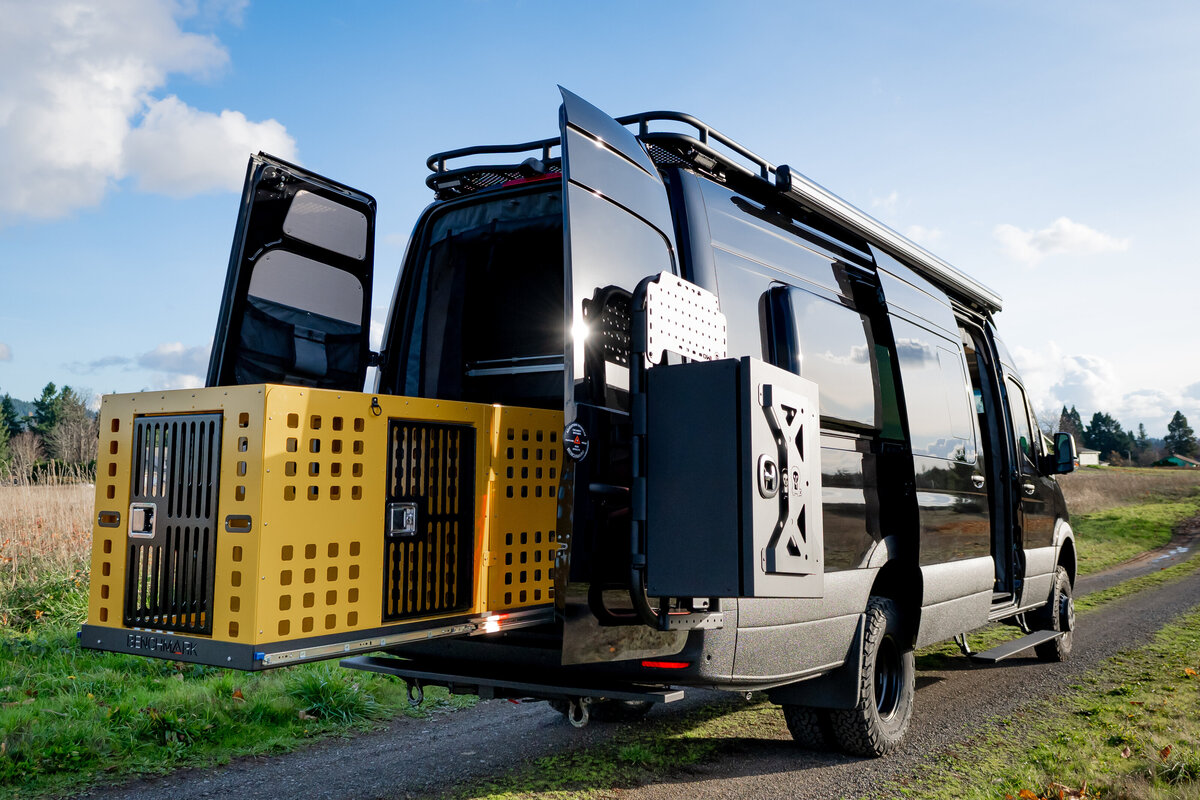

  • Benchmark gear tray mounted in garage, custom sixed for XC dog crate system
  • Two rear interior mounted 12v marine fans for garage area
  • Inhabit Design Works Chilewich custom mat set from cab to garage
  • Garage area tie downs and strap package with 4 lengths of L track, hooks, loops and straps included
  • Benchmark two stage heating system with 17K BTU blower, on demand hot water
  • Rear hot/cold shower mounted to passenger side systems case
  • Grey tank with Votronic tank monitor with electric dump valve
  • S&B Sprinter Long Range 45 gallon fuel tank
  • Lithionics Battery lithium power system, 640 ah
  • Xantrex 3000 watt inverter/charger
  • 280 AMP alternator
  • 30 amp shore power connection

Interior

details

  • Mercedes Sprinter factory glass on driver & passenger sides
  • Flarespace Flares with Arctic Tern Overland window mounted in driver side Flare
  • Maxx Air deluxe roof fan
  • ECU Performance Tune
  • Agile OffRoad RIP Kit
  • ARB twin motor compressor mounted in engine bay

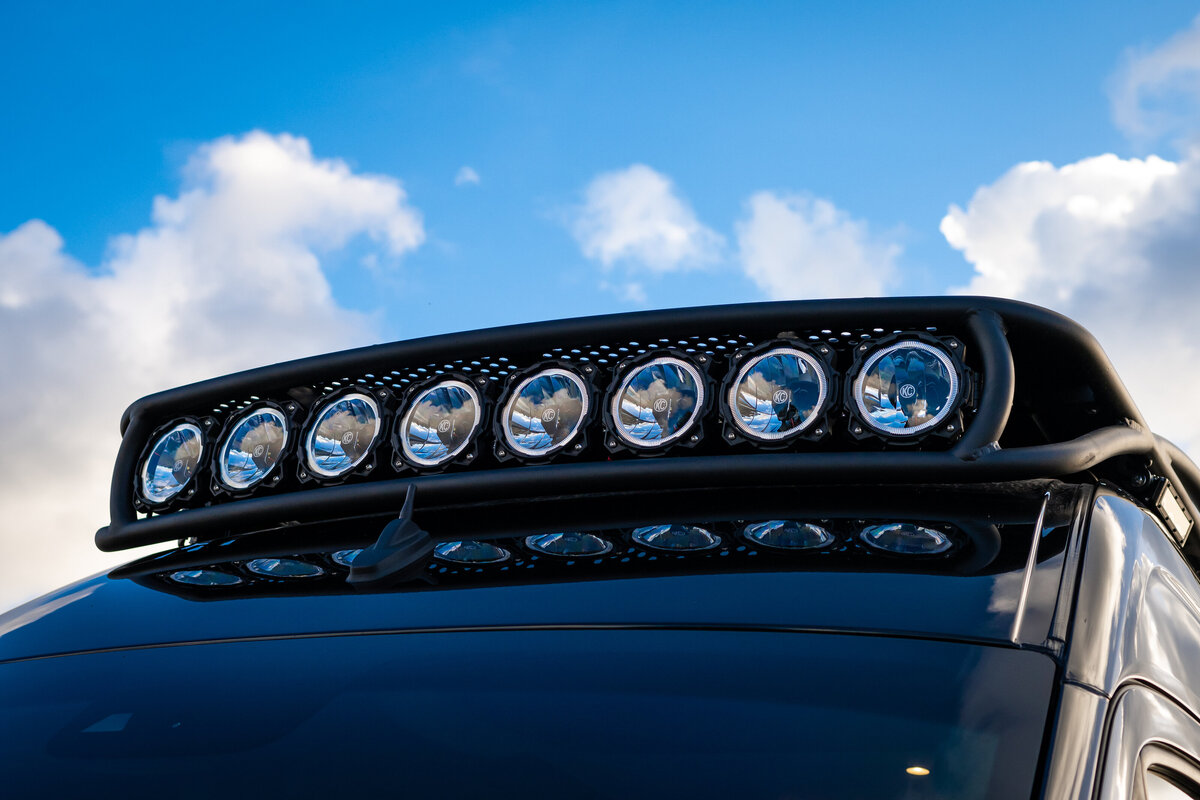

  • Roambuilt Safari Rack 2.0 with KC Gravity Pro Lightbar, Diode Dynamics load lights all around
  • Roambuilt Chicane Ladder
  • Nomadic Cooling X3 12V AC
  • Owl Vans Door Mounted Spare Tire Carrier
  • Owl Vans B2 Carrier with Mini Sherpa and Large Expedition Box
  • CA Tune Hammerhead Winch Bumper with Warn EVO VR 12S Winch, Warn Shackles in pewter
  • Bajas LP6s mounted to front bumper

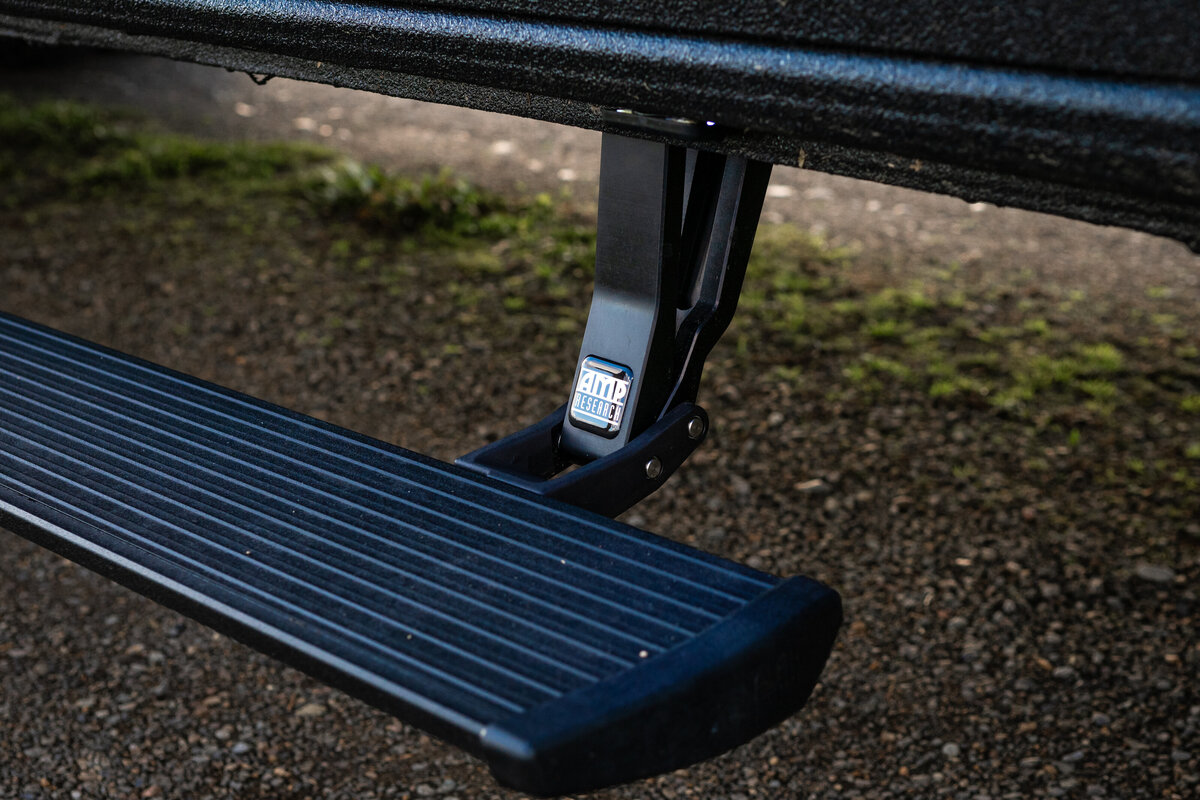

  • AMP Power Steps
  • Warn Epic Shackles custom powder coated in green
  • Zamp Obsidian solar 245 watts
  • Terrawagen Fender Flares and Hood Spoiler
  • BFG KO2 255/85/16 with Steel Wheels powder coated satin black
  • Van Compass Rear Step bumper
  • Fiamma F45s 13’ Awning
  • Piaa Horn Kit
  • Pedal Box Throttle Positioning Tune
  • Ceramic Tint for Cab Glass
  • Starlink Surface Mount FHPKIT
  • Line-X on lower rocker panels and all plastics

Exterior

details
